ER11-8 Premium

ER11 8 Pocket Premium Magazine

The patent pending RapidChange ATC Magazines allow for the use of cutting tools with a maximum diameter of 15mm for ER11 collets and is designed for A Type clamping nuts.

The ER11 8 Premium Magazine allows for safe unattended use by employing our innovative Tool Detection. It also includes a clear polycarbonate cover that provides a good seal against dust and debris.

$700.00

ER11-8 Premium

SKU N/A Categories , Tag

Description

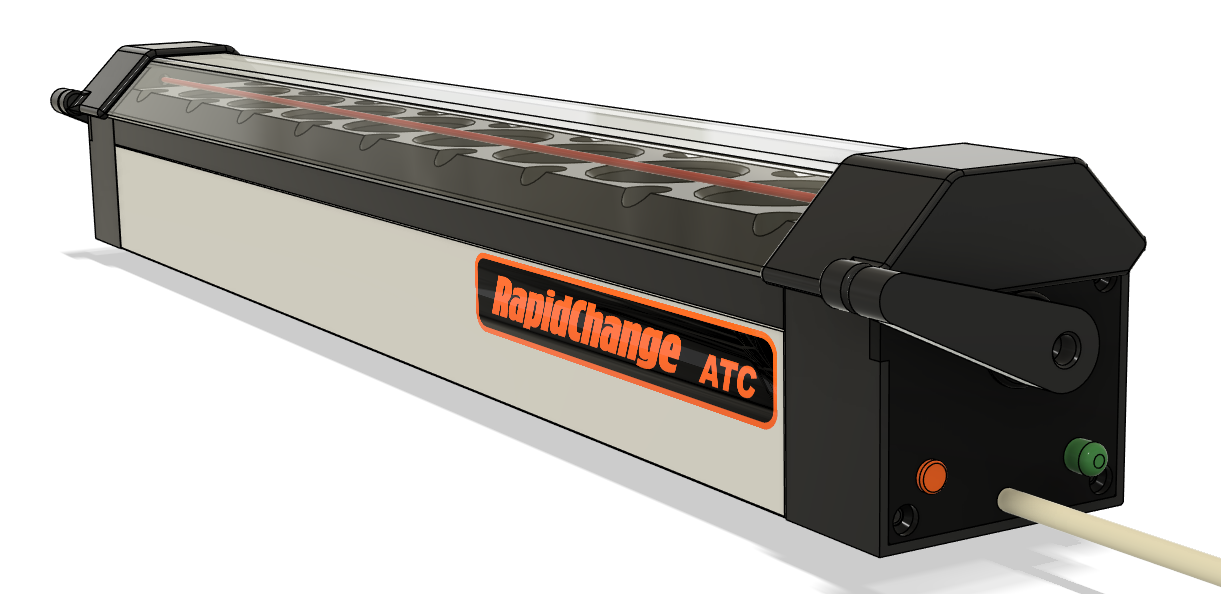

ER11 8 Pocket Premium

Patent Pending RapidChange ATC Magazines allow for the use of cutting tools with a maximum diameter of 15mm for ER11 collets and is designed for A Type clamping nuts.

The ER11 8 Premium Magazine allows for safe unattended use by employing our innovative Tool Detection. It also includes a clear polycarbonate cover that provides a good seal against dust and debris.

RapidChange ATC Magazines are machined from tough HDPE employing our unique patent pending spring loaded socket design. This design utilizes the CNC’s motion control and a VFD spindle to perform smooth and reliable tool changes. Along with a tool setter automatic tool changes are possible with minimal installation.

Macros for integrated motion control platforms are templated in our Web App. Just enter the variables for your machine and generate the macro files,

Dimensions for all magazine variations can be found HERE.
If you would like to check the fit on your machine we have mock up 3D models in .STEP format on our Discord Server for download.

Comprehensive installation Instructions to get you up and running quickly.

A Tool Setter is required  and any external tool setter may be used in the tool change procedure. We are no longer incorporating the adapter for the 3D Probe due to the new low profile cover.

We have developed a tool setter which is optically triggered and very reliable. It actually tested out slightly better than the 3D Probe we had been recommending.
It also is modular so it can be easily added to our current design. Our optical tool setter is now available.

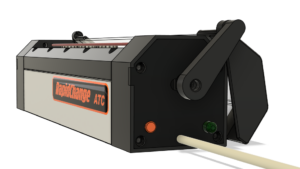

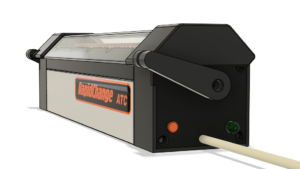

Dust Cover Control has changed for the better. The Premium Linear Magazine now uses servo motors to drive the dust cover through an output on the motion controller. If an output is not available on the controller a limit switch may be used to trigger the dust cover as the spindle moves over the magazine.

All the electronics are tucked nicely into the right end housing on the magazine.
12-30v is required and can be wired to the motion control board main power or a continuous aux power supply.

Red Power 12-30v input.

Black Gnd. (If using a separate power supply that of the motion controller the they must share a common ground).

Blue Dust Cover signal wire is connected to an output on the motion controller active low.

Yellow IR signal wire is connected to an input on the motion controller active high.

Additional information

Weight 1.5 kg
Dimensions 52 × 12 × 12 cm
Motion Control

FluidNC, Centroid, UCCNC, Mach3, Mach4, GrblHal, Linuxcnc, Masso, PlanetCNC, Grbl, Other
