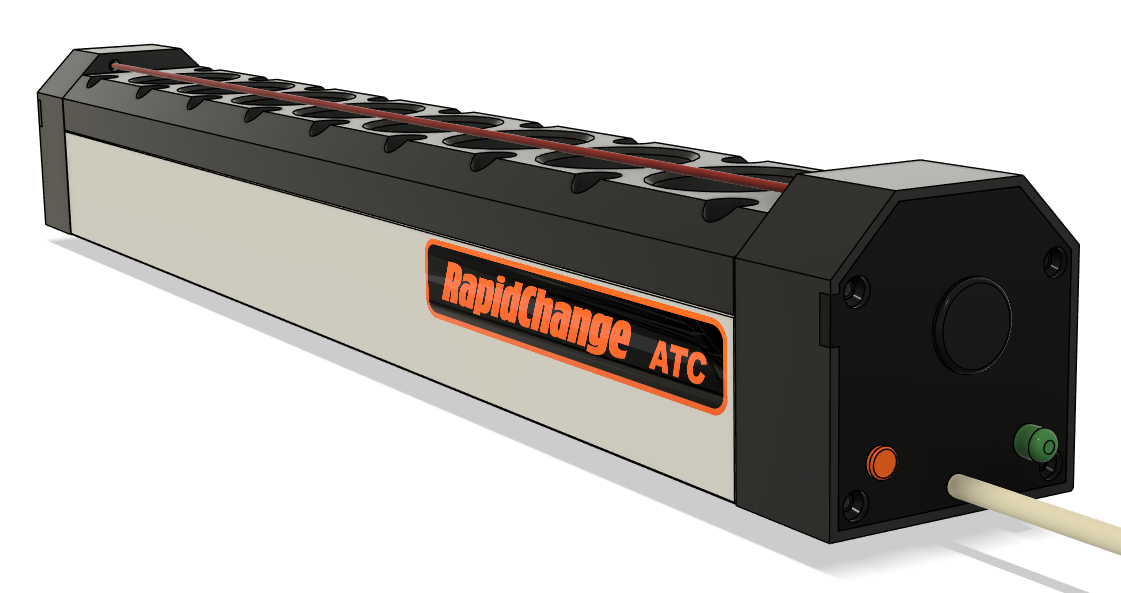

ER20-8 Basic

ER20 8 Pocket Basic Magazine

The patent pending RapidChange ATC Magazines allow for the use of cutting tools with a maximum diameter of 28mm for ER20 collets and is designed for A Type clamping nuts.

The Basic Magazine version is for those who want to employ automatic tool change utilizing their own custom dust solution and sensors or none at all.

$400.00

ER20-8 Basic

SKU N/A Category Tag

Description

ER20 8 Pocket Basic

Patent Pending RapidChange ATC Magazines allow for the use of cutting tools with a maximum diameter of 30mm for ER20 collets and is designed for A Type clamping nuts.

The RapidChange ATC Magazine is machined from tough HDPE employing our unique patent pending spring loaded socket design. It works with your CNC and common spindle to allow smooth and reliable tool changes out of the box. Aside from a tool setter and the ability to run your spindle in reverse for unloading tools it can be used as a stand alone unit with no inputs or outputs required.

Macros for integrated motion control platforms as well as g code templates for writing your own macros can be downloaded from the website after purchase.

Dimensions for all magazine variations can be found HERE.
If you would like to check the fit on your machine we have mock up 3D models in .STEP format on our Discord Server for download.

Comprehensive installation Instructions to get you up and running quickly.

The Basic Magazine version comes with all the features listed above and is a fully functional tool change option. This version is for those who want to employ automatic tool change utilizing their own custom peripherals or none at all.

Additional information

Weight 1.6 kg
Dimensions 46 × 10 × 10 cm
Motion Control

FluidNC, Centroid, UCCNC, Mach3, Mach4, GrblHal, Linuxcnc, Masso, PlanetCNC, Other
